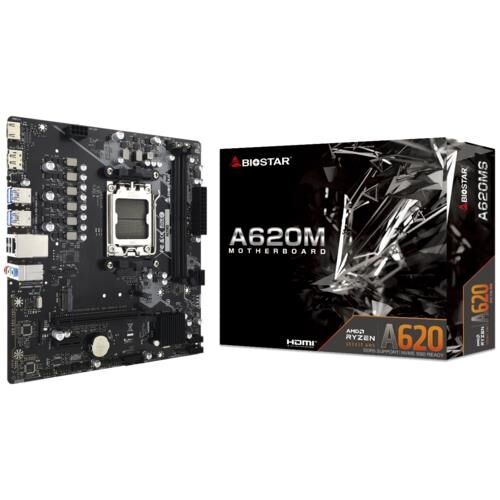

BIOSTAR 620MS AMD AM5 DDR5 5600 HDMI DP M2 mATX USB 3.2
2.973,60 TL
Kategori
Stok Kodu
A620MS
Garanti Süresi
24 Ay
Fiyat
2.478,00 TL + KDV
Havale
2.884,39 TL
(%3,00 havale indirimi)
Socket AM5 support AMD Ryzen™ 7000 / 8000 / 9000 series Processors
AMD A620 single chip architecture
Supports 2-DIMM DDR5 up to 128 GB Memory
Supports Front USB 3.2 Gen1
Supports PCIe 4.0 M.2 (64Gb/s)
Supports HDMI 4K resolution
Chipset AMD A620
CPU SUPPORT Socket AM5 support AMD Ryzen™ 7000 / 8000 / 9000 series Processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY AMD Ryzen 7000 / 8000 / 9000 Series Processors:
Supports Dual Channel DDR5 - 6000+(OC) MT/s, Non-ECC, Un-buffered Memory
2 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Support Intel® Extreme Memory Profile (XMP) memory modules and AMD EXTended Profiles for Overclocking (EXPO) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports
AMD Ryzen 7000 / 8000 / 9000 Series Processors
1x M.2 (Key M) Socket (M2M_CPU) :
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
AMD A620 Chipset
4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
* Specifications vary by CPU types
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio, Hi-Fi
USB 6 x USB 3.2 Gen1 port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode)
AMD A620 Chipset
1 x PCIe 3.0 x1 Slot
* Specifications vary by CPU types
REAR I/O 1 x SMART BIOS UPDATE Button
1 x HDMI Port (HDMI1.4)
1 x DP Port (DP1.2)
4 x USB 3.2 (Gen1) Type-A Port
2 x USB 2.0 Type-A Port
1 x Giga LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.1cm x 23.5cm ( W x L )
OS SUPPORT Supports Windows 10(64bit)/ 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
2 x M.2 Anchor
