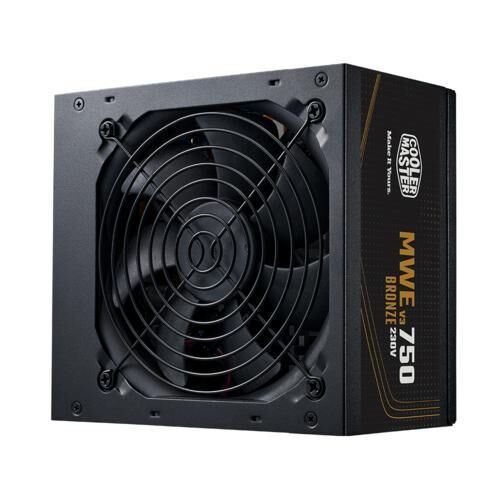

COOLER MASTER MWE V3 750W 80+Bronze ATX 3.1 Power Supply
4.476,00 TL
*492,51 TL den başlayan taksitlerle!
Kategori
Stok Kodu
MPE-7501-ACABW-3BEU
Garanti Süresi
24 Ay
Fiyat
3.730,00 TL + KDV
Havale
4.341,72 TL
(%3,00 havale indirimi)
PSU Gücü 750W
PSU Tipi ATX PSU
PSU Fan 120 mm
PSU Rengi Siyah
PSU Sertifika 80+ Bronz
PSU Modüler Kablo Yok
PSU Port ATX (20+4 PIN) 1x 20+4pin
PSU Port EPS (4+4 PIN) 2x 4+4pin
PSU Port SATA 6x SATA
PSU Port MOLEX 3x IDE
PSU Port PCI-E (6+2 PIN)4x PCI-E (6+2pin)
PSU Garanti Süresi 24 Ay
Introducing the MWE Bronze V3, the evolutionary next
step in Cooler Master power and the ATX 3.1 upgrade to
our MWE Bronze V2 PSU. With features such as 80 Plus
Bronze efficiency, a DC-to-DC + LLC circuit design, and a
quiet HDB fan cooling, the V3 provides valuable
performance in multiple dimensions.
Several changes and additions improve the overall user
experience. Together, these design choices deliver
an advanced PSU that is highly efficient and reliable.
With an embossed cable, exceptional temperature
resilience and a 5-year warranty, the MWE Bronze
V3 will evolve your machine.
Quiet HDB fan: A hydrodynamic bearing
fan delivers long-lasting quiet and effective
cooling.
80 Plus Bronze efficiency certification:
This unit is certified to achieve more than
85% efficiency at typical loads in a 115V test.
High temperature resilience: A 40°C
maximum operating temperature allows
for pushing your machine to the limits with
overclocking and other high-intensity
applications.
Embossed cable: An embossed cable
texture provides a
softer and overall improved grip with
a pleasing aesthetic.
ATX 3.1 support: Compliant with ATX 3.1 to
fully support a peak power 1.5 times higher
than the rated maximum wattage, this unit
is ideal for use with the 40 series GPUs.
Single +12V rail: All power comes from a single
+12V source, ensuring consistent output through
all connected cables.
DC-to-DC technology: The DC-DC circuit design
offers reliable, stable output to all connected
components.
2 EPS Connectors: Two 4-pin EPS connectors are
included for universal compatibility with currentgen motherboards.
Product Name MWE Bronze 750 V3
Item Code MPE-7501-ACAAW-3B
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 100 - 240V
Input Current 10 - 6A
Input Frequency 50 - 60Hz
Dimensions (L x W x H) 140 x 150 x 86mm
Fan Size 120 mm
Fan Bearing HDB
Efficiency ≥ 85% @ Typical Load
80 PLUS Rating 80 PLUS Bronze
ErP 2014 Lot 3 Yes
Operating Temperature 0 ~ 40℃
Power Good Signal 100 - 150ms
Hold Up Time ≥ 16ms
MTBF >100,000 hours @ 25℃ ambient
Protections UVP / OVP / OPP / OTP / SCP
Regulatory cTUVus,TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,
RoHS2.0 / BIS, KC (based on region's request.)
Connectors
ATX 24 Pin x1 = 1x (500mm)
EPS 8Pin / 4+4 Pin x2 = 1x (550+120mm)
SATA x6 = 2x (400+150+150mm)
Peripheral 4 Pin x3 = 1x (400+150+150mm)
PCI-e 6+2 Pin x4 = 2x (500+120mm)
AC INPUT 100-240V~ 10 - 6A 50 - 60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vstb
20A 20A 62A 0.3A 3A
TOTAL POWER 120W 744W 3.6W 15W
750W
