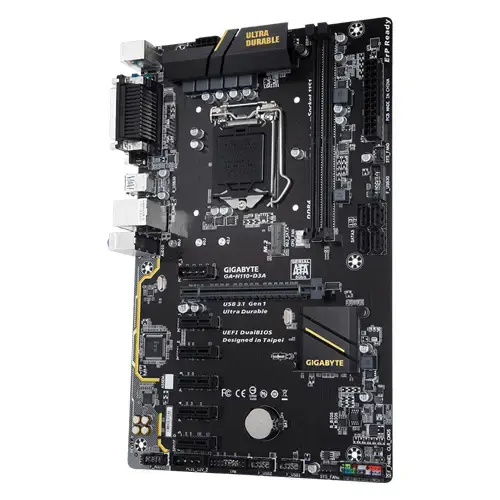

Gigabyte GA-H110-D3A Intel LGA1151 DDR4 ATX Anakart
1.800,00 TL
*194,01 TL den başlayan taksitlerle!
Kategori
Stok Kodu
GA-H110-D3A
Garanti Süresi
3 Ay
Fiyat
1.500,00 TL + KDV
Havale
1.746,00 TL
(%3,00 havale indirimi)
2.EL ÜRÜNDÜR
Tüm testleri yapılmış sağlam sorunsuz temiz ürün
Kasa Aynası : Var
Orj. Kutu : Yok
Aksesuar ve kablo : Yok
Tüm testleri yapılmış sağlam sorunsuz temiz ürün
Kasa Aynası : Var
Orj. Kutu : Yok
Aksesuar ve kablo : Yok
İşlemci
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Yongaseti
Intel® H110 Express Chipset
Bellek
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
(Please refer "Memory Support List" for more information.)
Dahili Grafik
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1 GB
Ses Desteği
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Genişleme Yuvaları
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
5 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
* When two or more graphics cards are installed, be sure to connect the power cable from the power supply to the PCIE_12V_1 or PCIE_12V_2 connector to provide sufficient current to the system and prevent damage to the devices.
Depolama Ara yüzü
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Dahili G/Ç Bağlantı Noktaları
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x PCIe power connectors
1 x CPU fan header
3 x system fan headers
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
Arka Panel G/Ç
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
G/Ç Denetleyicisi
iTE® I/O Controller Chip
