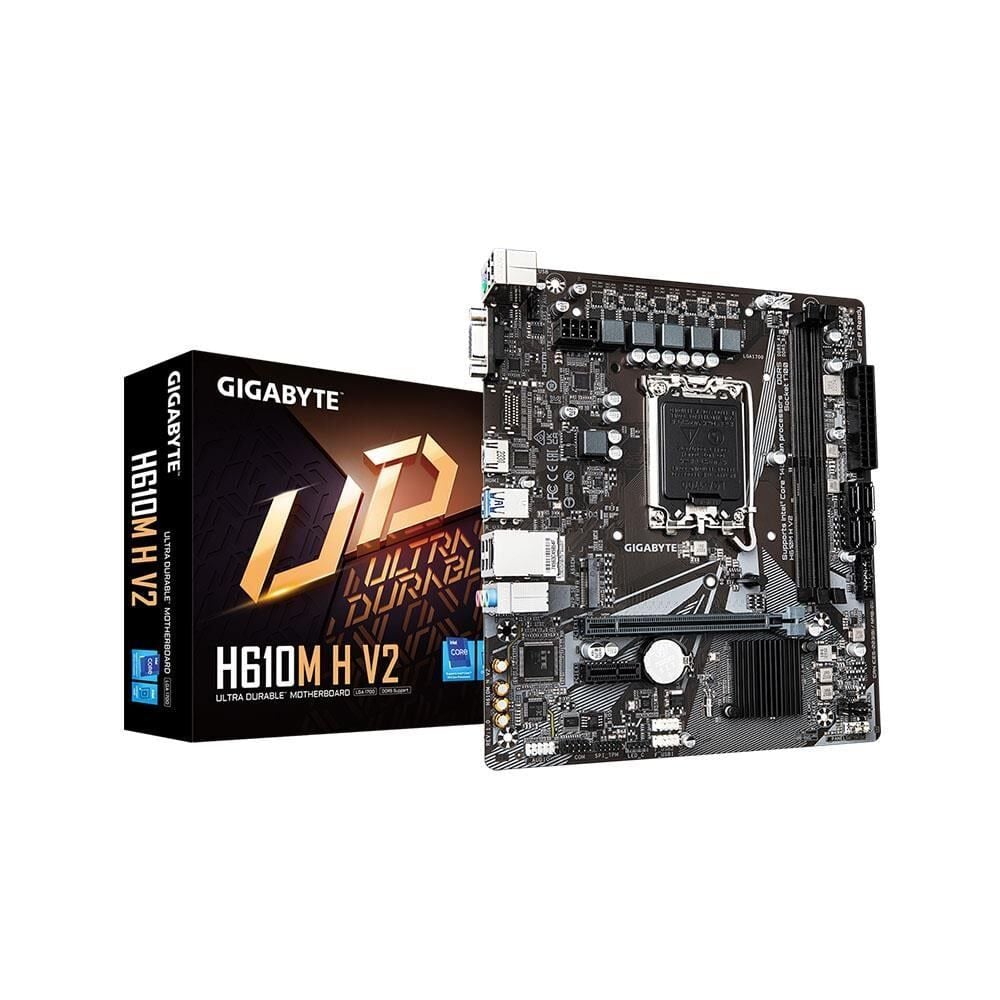

GIGABYTE H610M-H-V2-DDR5 5600MHz LGA1700 M.2 HDMI D-Sub MicroATX Anakart
1.560,00 TL
*168,14 TL den başlayan taksitlerle!
Kategori
Stok Kodu
H610M-H-V2-DDR5-2EL
Garanti Süresi
3 Ay
Fiyat
1.300,00 TL + KDV
Havale
1.513,20 TL
(%3,00 havale indirimi)
2.EL ÜRÜN
TEMİZ SAĞLAM SIFIR AYARINDA
FULL KUTULU
KASA AYNA + SATA KABLO VAR
GIGABYTE H610M-H-V2-DDR5 5600MHz LGA1700 M.2 HDMI D-Sub MicroATX Anakart
TEMİZ SAĞLAM SIFIR AYARINDA
FULL KUTULU
KASA AYNA + SATA KABLO VAR
GIGABYTE H610M-H-V2-DDR5 5600MHz LGA1700 M.2 HDMI D-Sub MicroATX Anakart
CPU LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
* Please refer to "CPU Support List" for more information.
L3 cache varies with CPU
Chipset Intel® H610 Express Chipset
Memory 14th/13th Gen i9/i7: DDR5 5600/5200/4800/4400 MT/s
13th Gen i5/i3 & 12th Gen Intel, Pentium Gold, Celeron: DDR5 4800/4400 MT/s
2 x DDR5 DIMM sockets, up to 128 GB (64 GB single DIMM)
Dual channel memory architecture
Support for ECC and non-ECC Un-buffered DIMMs
Support for XMP memory modules
Onboard Graphics Intel® HD Graphics
- 1 x D-Sub port, max resolution 1920x1200@60 Hz
- 1 x HDMI port, max resolution 4096x2160@60 Hz (*HDMI 2.1, HDCP 2.3)
- Support native HDMI 2.1 TMDS compatible ports
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
* Audio jack functionality configurable via software
LAN Realtek® GbE LAN chip (1 Gbps/100/10 Mbps)
Expansion Slots CPU: 1 x PCIe x16 slot, PCIe 4.0 x16
Chipset: 1 x PCIe x1 slot, PCIe 3.0 x1
Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, 2280/2260 PCIe 3.0 x4/x2 SSD)
4 x SATA 6Gb/s connectors
USB Chipset: 4 x USB 3.2 Gen 1 (2 back, 2 internal)
4 x USB 2.0/1.1 back panel
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 internal headers
Internal I/O Connectors 1 x 24-pin ATX main power
1 x 8-pin ATX 12V
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x TPM header (GC-TPM2.0 SPI V2 only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (*Depends on installed fan)
BIOS 1 x 128 Mbit flash, AMI UEFI BIOS licensed
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center (*Available applications vary by motherboard)
@BIOS, EasyTune, Smart Backup, System Information Viewer
Support for Q-Flash
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software (*Service discontinued)
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX; 22.3cm x 19.6cm
