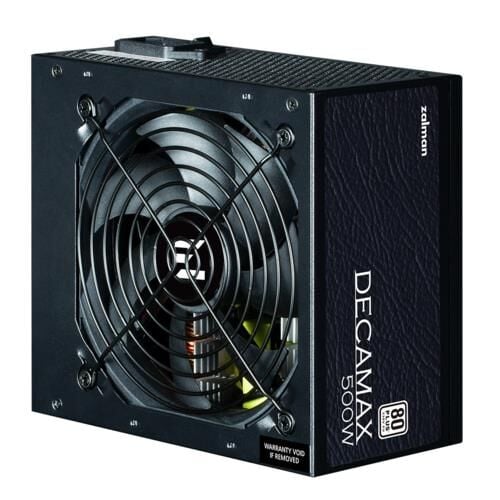

ZALMAN ZM500-LX3 500W 80+ Güç Kaynağı
2.144,40 TL
*235,96 TL den başlayan taksitlerle!
Kategori
Stok Kodu
ZM500-LX3
Garanti Süresi
24 Ay
Fiyat
1.787,00 TL + KDV
Havale
2.080,07 TL
(%3,00 havale indirimi)
PSU Gücü 500W
PSU Tipi ATX PSU
PSU Fan 120 mm
PSU Rengi Siyah
PSU Sertifika 80+
PSU Modüler Kablo Yok
PSU Port ATX (20+4 PIN) 1x 20+4pin
PSU Port EPS (4+4 PIN) 1x 4+4pin
PSU Port SATA 4x SATA
PSU Port MOLEX 3x IDE
PSU Port PCI-E (6+2 PIN) 2x PCI-E (6+2pin)
PSU Garanti Süresi 24 Ay
Yüksek Koruma Devre Tasarım
Model DecaMax [500W] ZM500-LX3
80PLUS STANDARD Power Supply
Efficiency Max 85% @230VAC, Typical Load
Dimensions 140(L) x 150 (W) x 86 (H) mm
MTBF 100,000Hours
Weight 1.35 kg
Operating Temperature 10~45℃
PFC Active PFC 99%
Regulatory KC, CE, CB, RoHS, EAC,RCM
Type Intel ATX 12V Ver 2.31
Protection OPP/ OVP/ UVP/ SCP
Input Voltage 200-240VAC
Input Current 5A
Input Frequency 50-60Hz
Fan Size 120mm
Rated Speed 2,500 RPM
Fan Bearing Hydro- Dynamic Bearing
Cables (Connector) Mainboard Cable
CPU Cable x 1
PCI Express Cable (Connector 2EA) x 2
IDE Connector x 3
S-ATA Cable x 4
80 PLUS 230V EU
Standard Certified
Superior Efficiency & Energy Savings
INTEL 5Vsb 3.0A Compatible
Ready to 5Vsb 3.0A for
Intel Desktop Platform Form Factor
Power Supply 1.42
Decamax 500W
Guaranteed Rated Output
① Active AFC With 99%
Active PFC system with maximum power factor
of 99% providing consistent and stable output
as well as high energy efficiency
② High performance Capacitor (105˚C)
Highly reliable capacitor used to supply stable
Voltage even at high temperatures up to 105˚C
③ Built-In EMI Filter
EMI Filter is installed to suppress frequency
that causes noise for better system operation
④ Switching Transform
Stable current is provided by the switching
transformer without over loading the input current
⑤ 12V Single Rail 91% Availability
Single rail design delivers up to +12V of available
power at 91% output to provide stable voltage
to CPU and GPU that are main PC components
⑥ Built-in Aluminum Heatsink
Dual Aluminum heatsink block has been
installed to minimize internal heat production
Active PFC with Up to 99%
Maximum Power Factor
Active PFC system with maximum power factor
of 99% providing consistent and stable output
as well as high energy efficiency
Multiple Protection Circuit System
OPP, OVP, UVP, SCP
OPP (Over Power Protection)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short-Circuit Protection)
HDB(Hydro-Dynamic Bearing)
Quiet and Long Lifespan
Cooling Technology
HDB(Hydro-Dynamic Bearing) has benefits
of low noise and long life span
It discharges internal that quickly and provides
sufficient cooling at a low RPM to maximize stable,
safe power supply
120mm HDB Fan
120mm Low-noise fan delivers powerful spin
even at a low RPM to quickly removes heat
from power supply for optimal cooling performance
Highly Energy-Efficient Standby
Power Supply(ErP Lot 6 Certified)
ZALMAN’s power supply has such remarkable
energy efficiency, that during standby the power supply
can be kept under 0.5W to avoid any unnecessary
power consumption.
The power supply has acquired ErP LOT 6 which passed
European energy saving standards for environmental
friendly and energy efficient experience for users.
Eco-Friendly Products
All Materials included are
Environmentally safe
and Harmless
RoHS Compliant
Certified products are environmentally safe that
do nor cause harm to the human body
Certification is received when XRF testing determines
that the 10 hazardous substances is below the standard
value for the electronic products exported to Europe
Unlike other inexpensive products, Zalman products
are produced from the beginning
with RoHS standards in mind
RoHS :
Restriction of the use of Hazardous Substances in EEE
Safety/EMI Approvals
KC, CE, CB, RCM, EAC, RoHS
Zalman’s Power supply has acquired many domestic
and overseas certifications to ensure a safe and stable
PC experience for all users
Standard-ATX
Standard ATX size provides wide compatibility
140 x 150 x 86(H)mm
All Black and simple Cables
Convenient Sleeve Cable
Users can install the system easily by delicately
processed Sleeve cable
Black Flat Cable
Zalman applies flat cable to all cables,
which makes the cables easier organize
when building system
